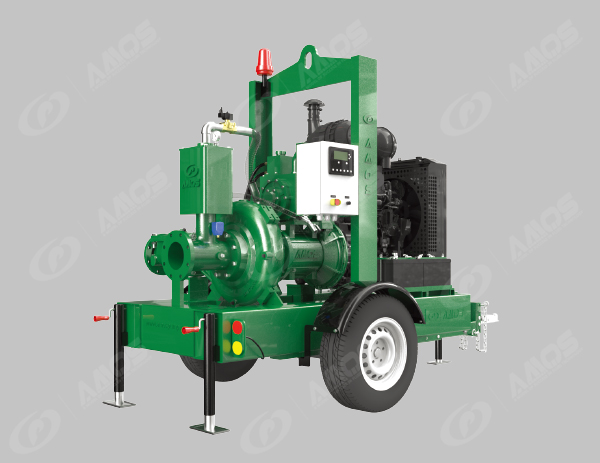

MH100S14
Pump Size:4x4 inches (100x100 mm)
Max Flow:1650 US GPM (375 m3/h)
Max Head:425 feet (130 m)
Solids Size: 3 inches (76 mm)
Engine Specifications Engine Model:DEUTZ TCD3.6L4
Rated Power at speed:122HP @ 2300RPM
ENGINE TYPE: Water-cooled 4-Cylinder inline engine with turbocharging and cooled, external exhaust gas recirculation.
Displacement:220 Cu.In. (3.6 Liters)
EPA Tier:Tier 4 Final/Stage V
Fule Tank:99 U.S. Gallons (375 Liters)
Full Load Operating Time:16.5 Hours
Starter:12 Volts Electric
Control Panel: Murphy, Controls Inc, Deepsea, Kensho, Lofa

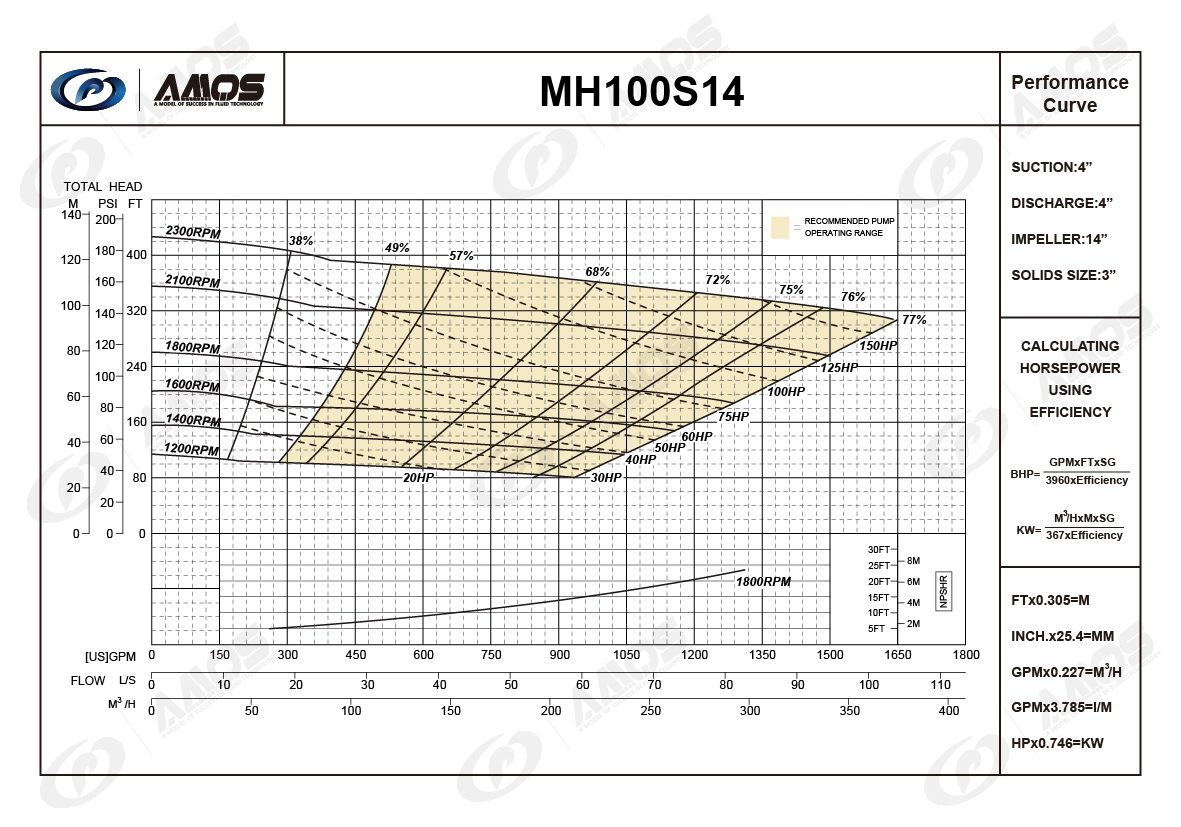

Performance Chart
MH100S14
