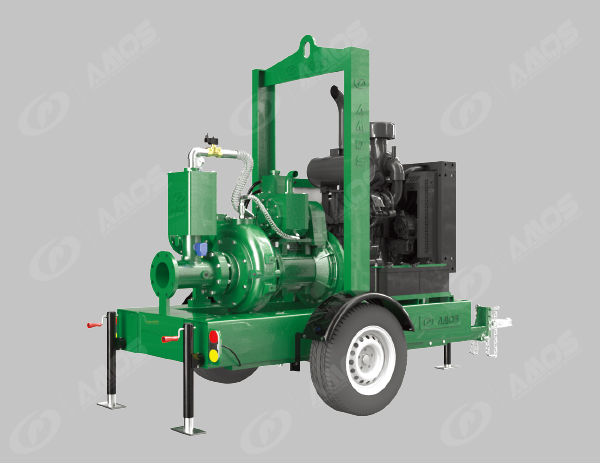

LH150S12

Pump Specifications Pump Model: MCL6612S
Pump Size: 6x6 inches (150x150 mm)
Max Flow: 3100 US GPM (700 m3/h)
Max Head: 242 feet (74 m)
Solids Size: 3 inches (76 mm)
Engine Specifications Engine Model:DEUTZ TCD3.6L4
Rated Power at speed:122HP @ 2300RPM
ENGINE TYPE: Water-cooled 4-Cylinder inline engine with turbocharging and cooled, external exhaust gas recirculation.
Displacement:220 Cu.In. (3.6 Liters)
EPA Tier:Tier 4 Final/Stage V
Fule Tank:106 U.S. Gallons (400 Liters)
Full Load Operating Time:17.6 Hours
Starter:12 Volts Electric
Control Panel: Murphy, Controls Inc, Deepsea, Kensho, Lofa

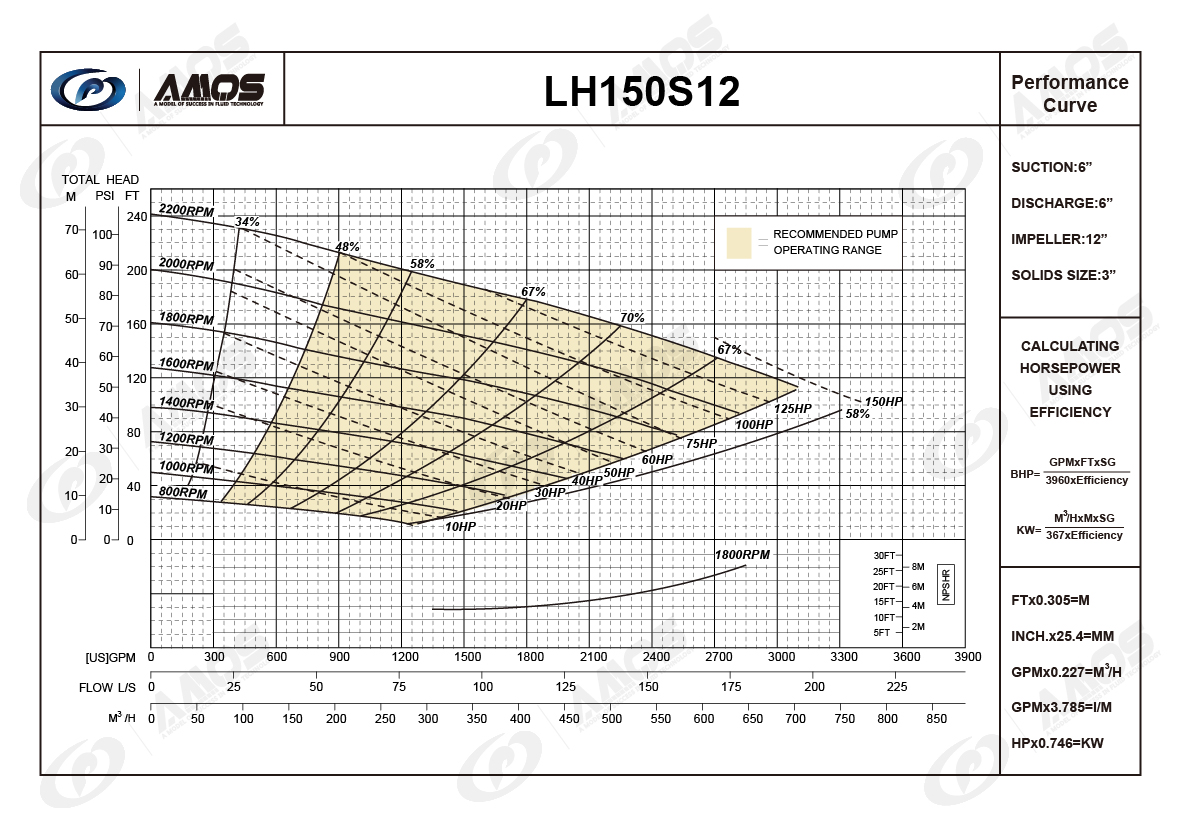

Performance Chart

 LH150S12
