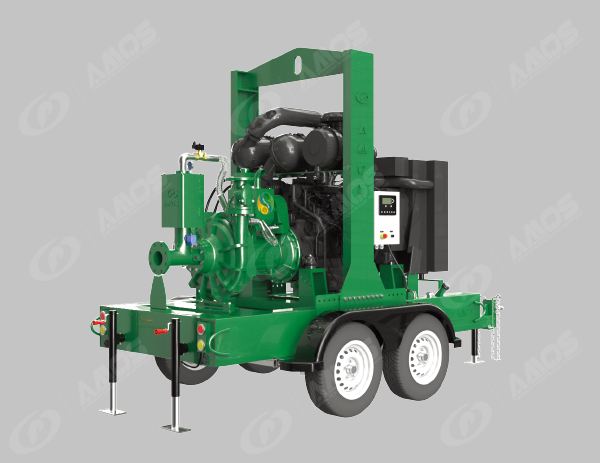

HH100C
Pump Size:4x3 inches (100x80 mm)
Max Flow:801 US GPM (182 m3/h)
Max Head:800 feet (244 m)
Solids Size:0.75 inches (19.05 mm)
Engine Specifications Engine Model:DEUTZ TCD6.1L6
Rated Power at speed:246HP @ 2300RPM
ENGINE TYPE:Water-cooled 6-cylinder inline engine with turbocharging, charge air cooling and cooled external exhaust gas recirculation.
Displacement:370 Cu.In. (6.1 Liters)
EPA Tier:Tier 4 Final/Stage V
Fule Tank:158 U.S. Gallons (600 Liters)
Full Load Operating Time:13.1 Hours
Starter:12 Volts Electric
Control Panel: Murphy, Controls Inc, Deepsea, Kensho, Lofa

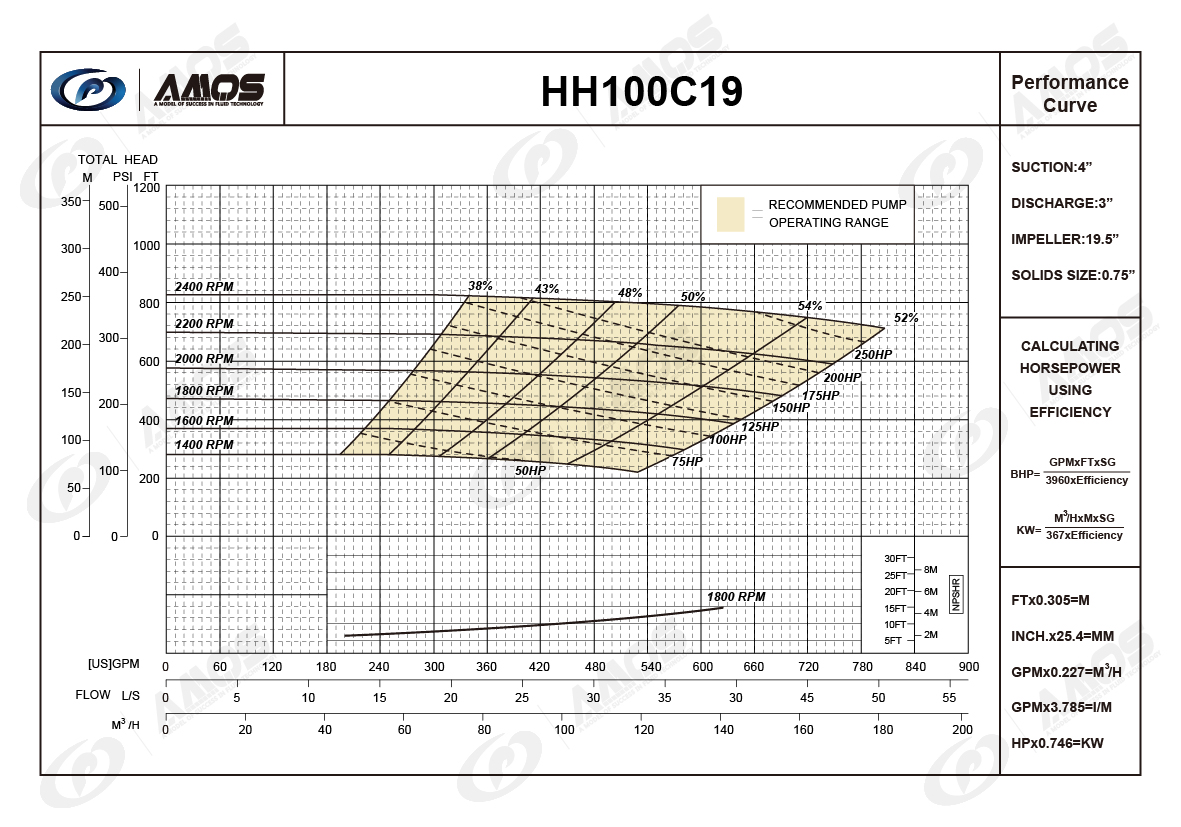

Performance Chart
HH100C19
