MCGO series gear pumps are designed to handle common and highly corrosive non-abrasive liquids that must be pumped under pressure. Manufactured to extremely precise tolerance, the MCGO gear pump prevents system contamination, maintains the purity and integrity of the liquid and provide for greater flow control. Its rugged three-part housing provides ease of servicing and parts replacement. With no overhung bearing loads, the rotor shaft can't deflect and cause premature wear. The helical gears supported on both sides provides relatively quiet operation. Additionally, MCGO pumps offer bi-directional operation for applications requiring reversing flow. Because of the above features, MCGO gear pumps are popular for precise transfer and metering applications involving polymers, fuels, and chemical additives. It is also routinely used for high-pressure applications such as hydraulic applications.

ApplicationsVarious fuel oils and lube oils
Chemical additive and polymer metering
Chemical mixing and blending (double pump)
Industrial and mobile hydraulic applications (log splitter, lifts, etc.)
Acids and caustic (stainless steel or composite construction)
Low volume transfer or application
Food & beverage
Oil & gas
Agriculture
Tech DataSuction Port: 1/2" to 1-1/2" female NPT or BSPT
Discharge Port: 1/2" to 1-1/2" female NPT or BSPT
Maximum Flow: 22.6 GPM
Maximum Head: 150 Ft
Maximum Temperature: 450F
Fluid Maximum Viscosity: 100,000 cps (462,000 SSU)
DesignationMCGO 1.5":
Suction Port: 1 1/2" female NPT or BSPT
Discharge Port: 1 1/2" female NPT or BSPT

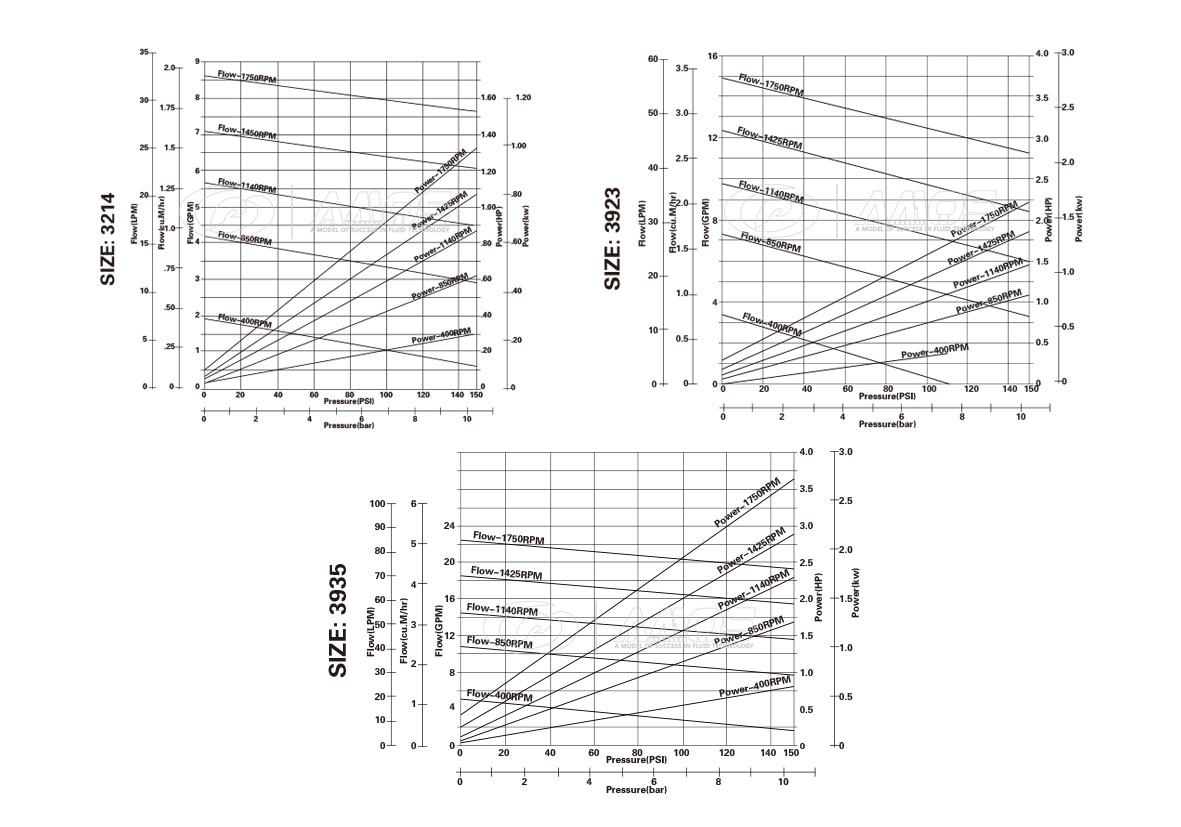

Performance Curve

 MCGO
