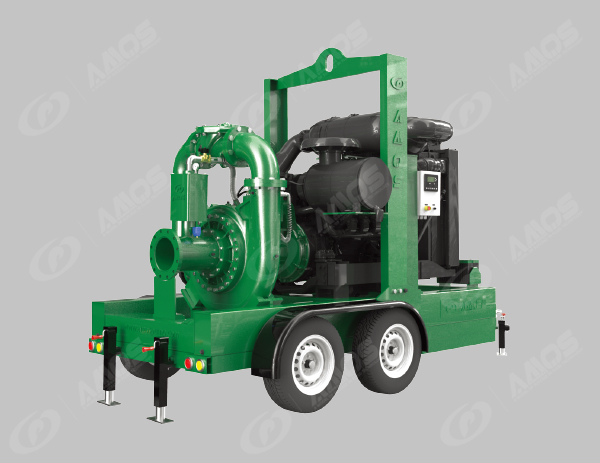

HH150C22
Pump Size:6x4 inches (150x100 mm)
Max Flow:1600 US GPM (363 m3/h)
Max Head:660 feet (201 m)
Solids Size:2 inches (51 mm)
Engine Specifications Engine Model:DEUTZ TCD7.8L6
Rated Power at speed:335HP @ 2200RPM
ENGINE TYPE:Water-cooled 6-cylinder inline engine with turbocharging, charge air cooling and cooled external exhaust gas recirculation.
Displacement:476 Cu.In. (7.8 Liters)
EPA Tier:Tier 4 Final/Stage V
Fule Tank:202 U.S. Gallons (765 Liters)
Full Load Operating Time:12.2 Hours
Starter:24 Volts Electric
Control Panel: Murphy, Controls Inc, Deepsea, Kensho, Lofa

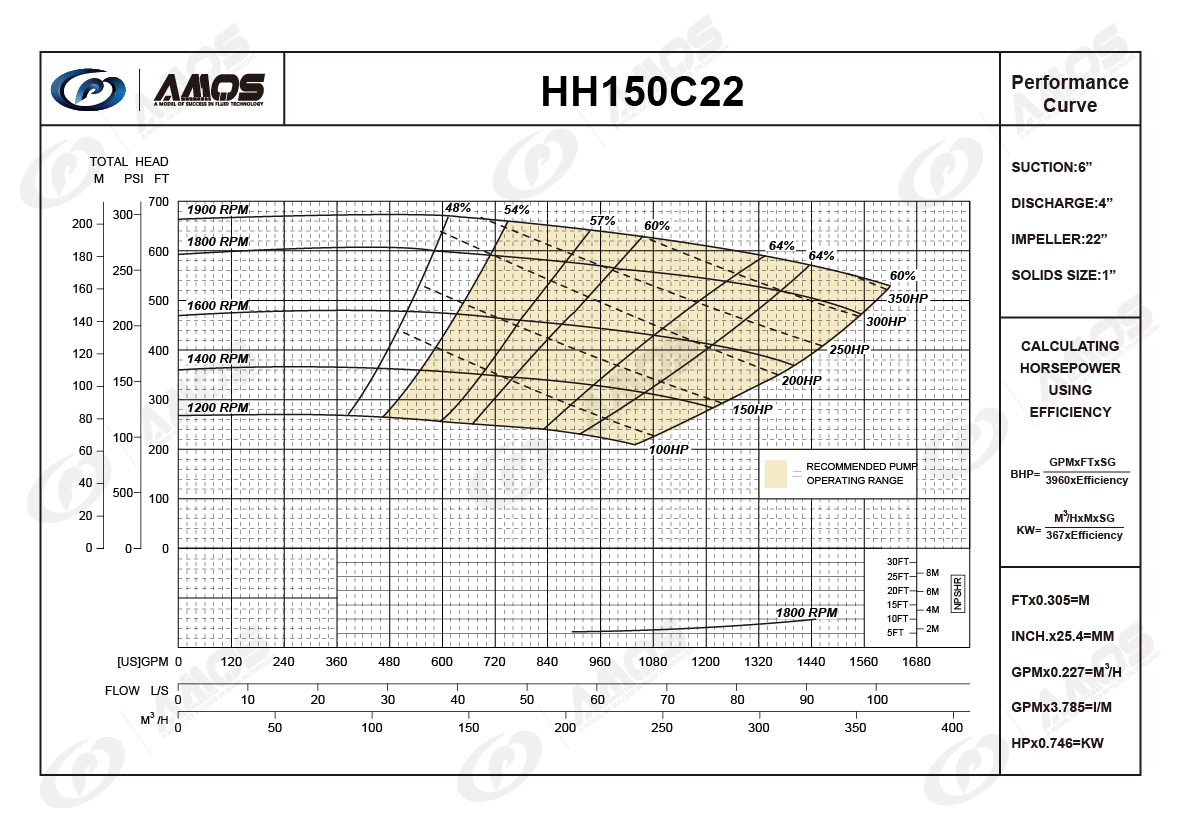

Performance Chart
HH150C22
