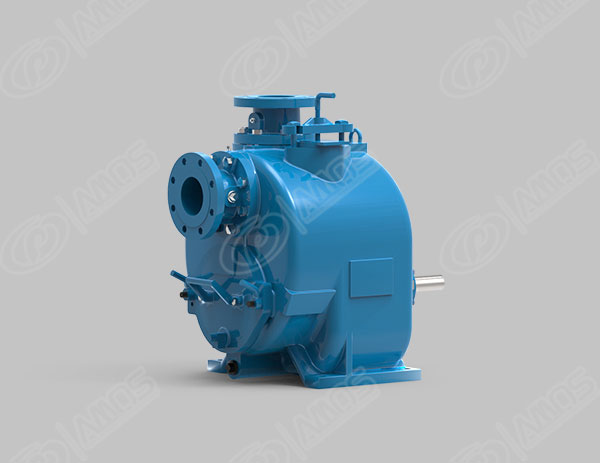

MCT series pumps are Designed for economical, trouble-free operation, the superior solids handling capabilities of the pump make it ideally suited for a variety of applications including solids-laden liquids and slurries. The impeller, seal, wears plate and flap valve can all be accessed through the cover plate opening for inspection or service. Atmospheric barrier along with a lip seal provide additional protection of bearings, also allows external monitoring. Mechanical cartridge seal is specifically designed for abrasive and or trash handling service. The entire rotating assembly can be removed without disturbing pump volute or piping.

Applications Municipal
Marine
Industrial sewage water treatment
Agricultural Irrigation
Tech Data Dis.charge Size:2"-12"(50mm-300mm)
Capacity:Max 1200M3/H
Head:Max 35M
Media Temp:-10℃~+85℃
System Pressure:Max 3.5BAR
Suction:Max 7.6m
Solids:Max 76.2mm
Designation

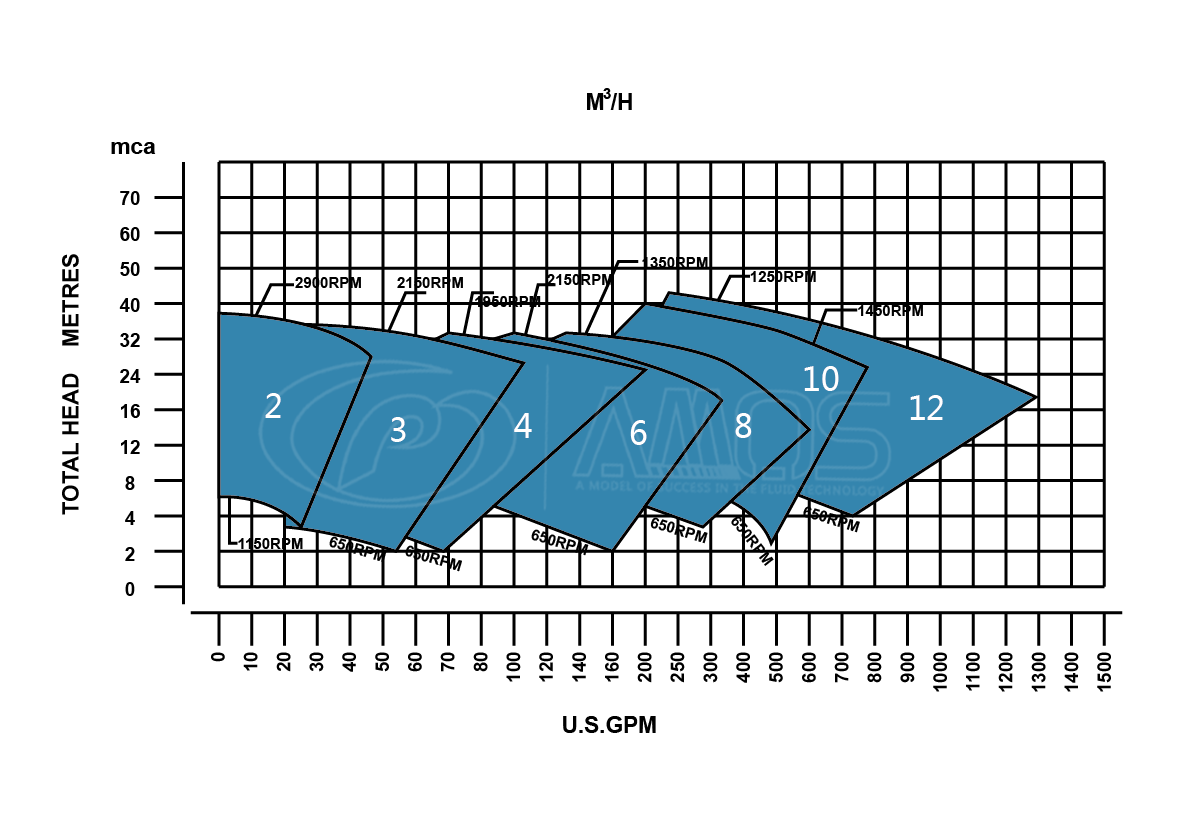

Performance Chart

 MCT
