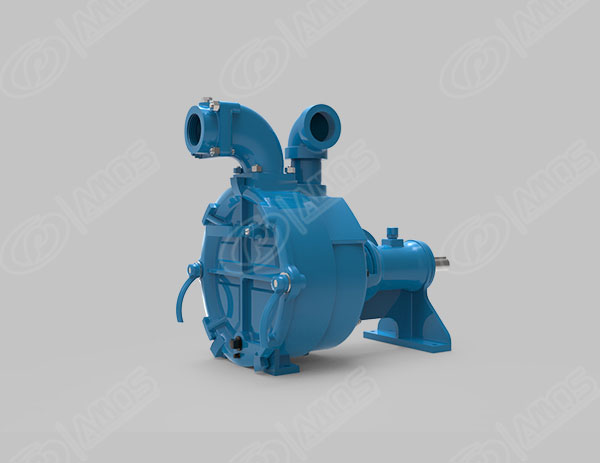

MCS Self Priming Solids Handling Pumps offer exceptional liquid transfer capabilities, which are ideally suited for industrial or municipal waste applications. The pumps designed to pass up to 3" spherical solids. Available in a wide variety of models, capacities to 1,650 GPM, heads to 184 ft. Suction and discharge sizes 2", 3", 4" and 6". Flanges are made to ANSI 125# FF.
Industrial sewage
Construction sewage
Coal liquid, rain water
Dejecta
Sludge
Tech Data Dis.charge Size：2＂-12＂（50mm-300mm）
Capacity：Max 1200M3/H
Head：Max 35M
Media Temp：-10℃～+85℃
System Pressure:Max 3.5BAR
Suction：Max 7.6m
Solids：Max 76.2mm
Designation

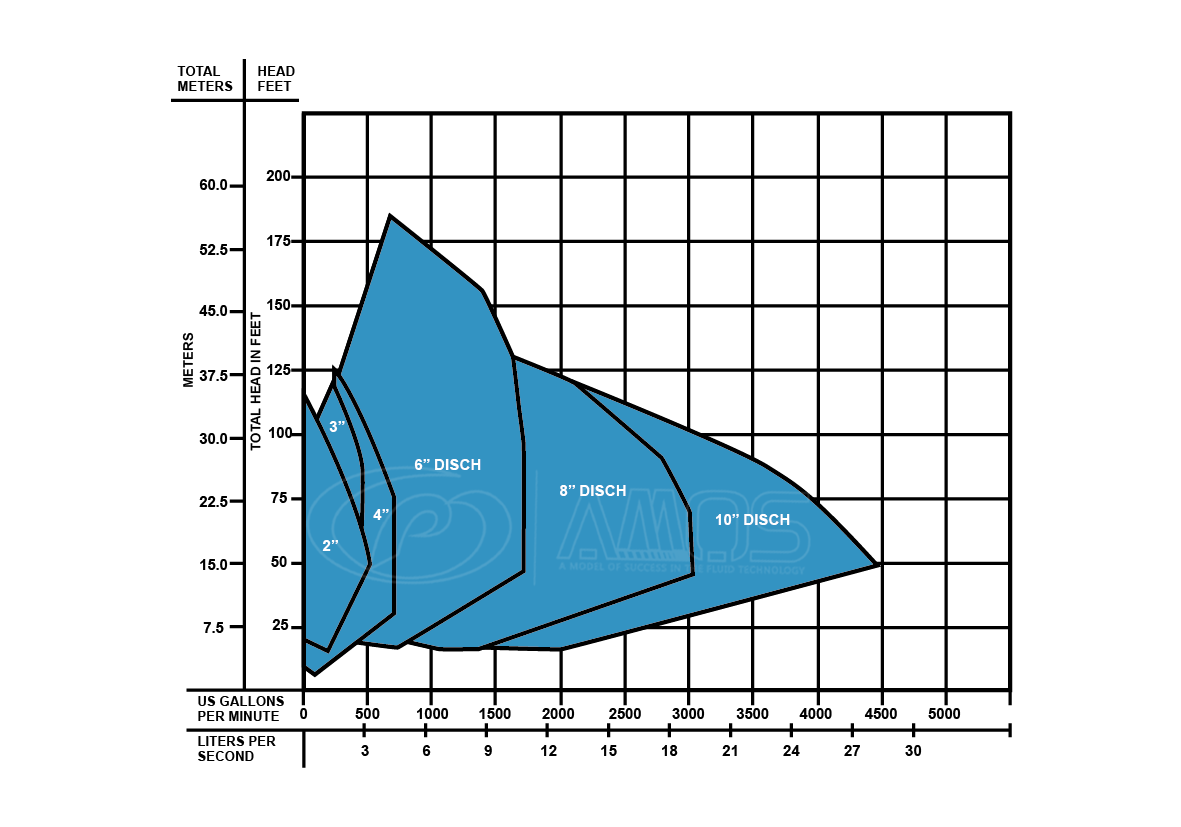

Performance Chart
MCS
