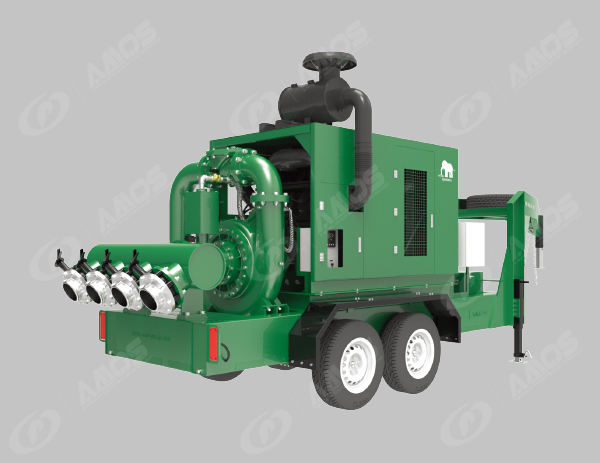

HH250S22
Pump Size:10x8 inches (250x200 mm)
Max Flow:8600 US GPM (1952 m3/h)
Max Head: 590 feet (180 m)
Solids Size:4 inches (100 mm)
Engine Specifications Engine Model:DEUTZ TCD16.0V8
Rated Power at speed:697HP @ 2100RPM
ENGINE TYPE:Water-cooled, V version (90°）8-Cylinder enginewith turbocharging and charge air cooling.
Displacement: 976 Cu.In. (16 Liters)
EPA Tier:Tier 4 Final/Stage V
Fule Tank:338 U.S. Gallons (1280 Liters) Larger volume fuel tank is availabl
Full Load Operating Time: 9.9 Hours
Starter:24 Volts Electric
Control Panel: Murphy, Controls Inc, Deepsea, Kensho, Lofa

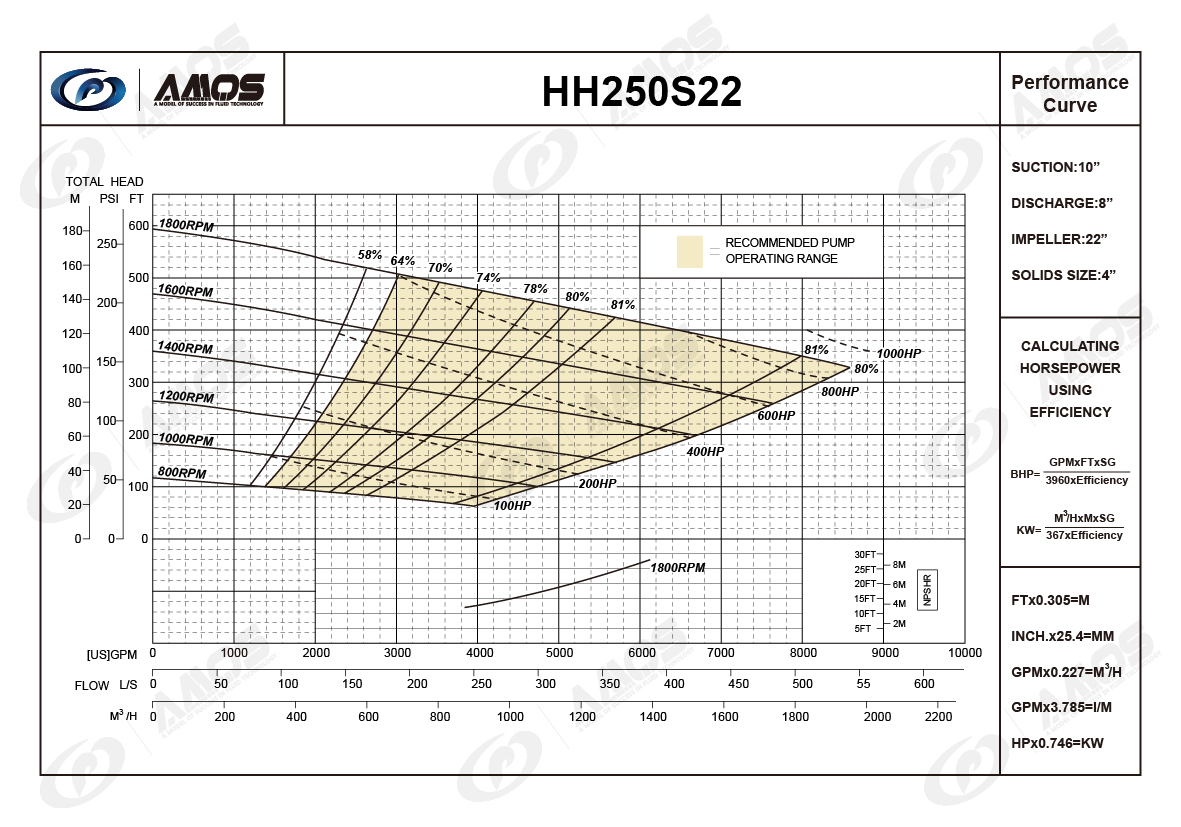

Performance Chart
HH250S22
