HH200C21
Pump Size:8x6 inches (200x150 mm)
Max Flow:3590 US GPM (817 m3/h)
Max Head:510 feet (156 m)
Solids Size:0.75 inches (19 mm)
Engine Specifications Engine Model:DEUTZ TCD12.0V6
Rated Power at speed:524HP @ 2100RPM
ENGINE TYPE:Water-cooled 6-cylinder inline engine with turbocharging, charge air cooling and cooled external exhaust gas recirculation.
Displacement:732 Cu.In. (12 Liters)
EPA Tier:Tier 4 Final/Stage V
Fule Tank:338 U.S. Gallons (1280 Liters)
Full Load Operating Time:13.1 Hours
Starter:24 Volts Electric
Control Panel: Murphy, Controls Inc, Deepsea, Kensho, Lofa

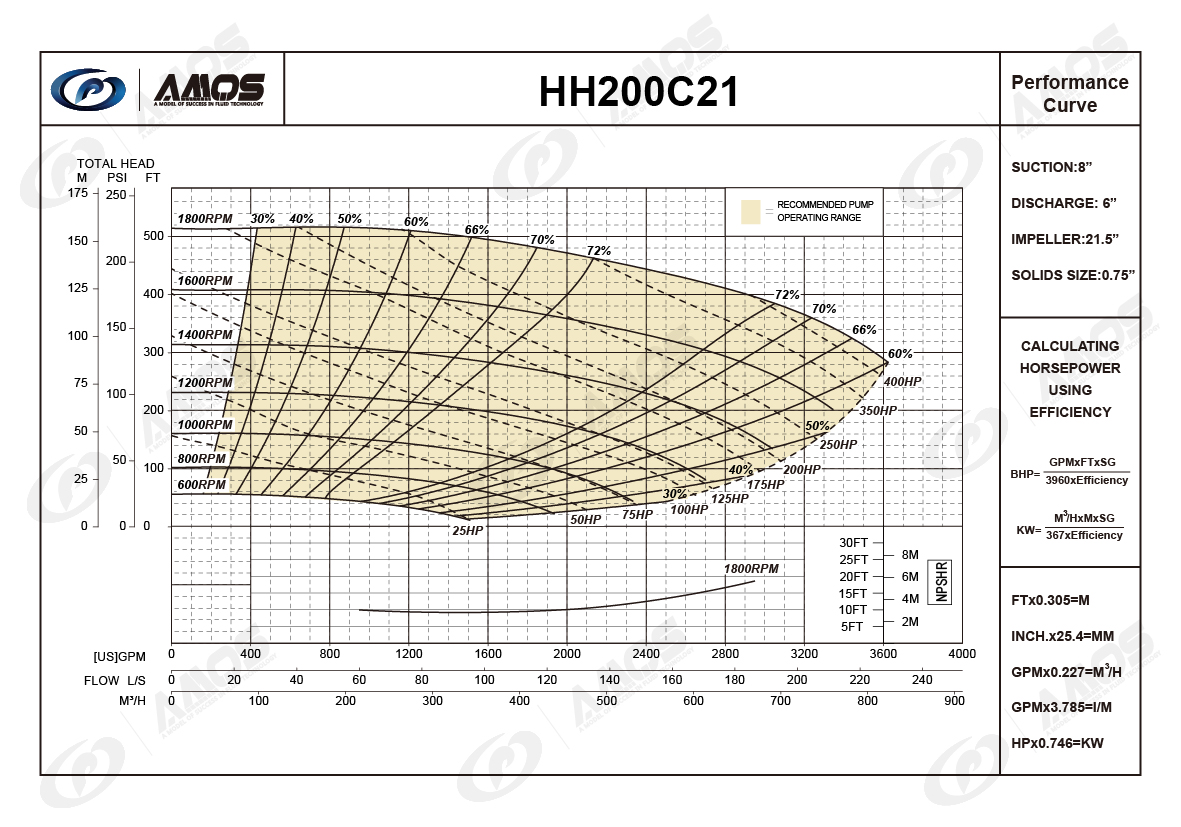

Performance Chart
HH200C21
