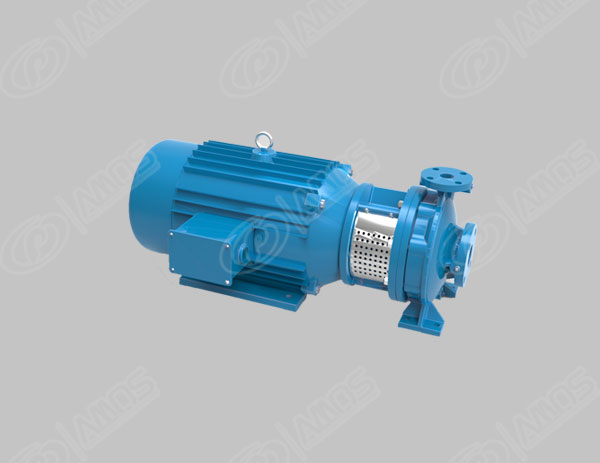

MCFA series pump is horizontal end suction, well designed volute type casing, foot mounted close coupled motor pump with compact & sturdy structure. It is built for greater operating efficiency and economy. Volute casing and enclosed impellers are designed to give the best possible hydraulic efficiency and good suction lift. Standard ANSI flange mounted with standard NEMA EPACT C face electric motor available from any electric motor manufacturers. As the impeller is mounted on a stub shaft fitted onto motor shaft, alignment problem is completely eliminated.This series pump also has Back Pull Out design the same as our other end suction series. Dynamically balanced rotor ensures vibration and noise free operations, increase the bearing and seal life.

Applications Regional heating
General water supply
Air conditioning
Refrigeration plant
Industry
Fire fighting
Environmental Engineering
Tech Data Dis.charge Size:1.25"-12"
Capacity:Max 2400GPM
Head:Max 500FT
Media Temp:-20℃~+130℃
System Pressure:Max 16BAR
Designation MCFA 2x1.25-7:
Imp dia is 7"
Outlet is 1.25"
Inlet is 2"
Series code

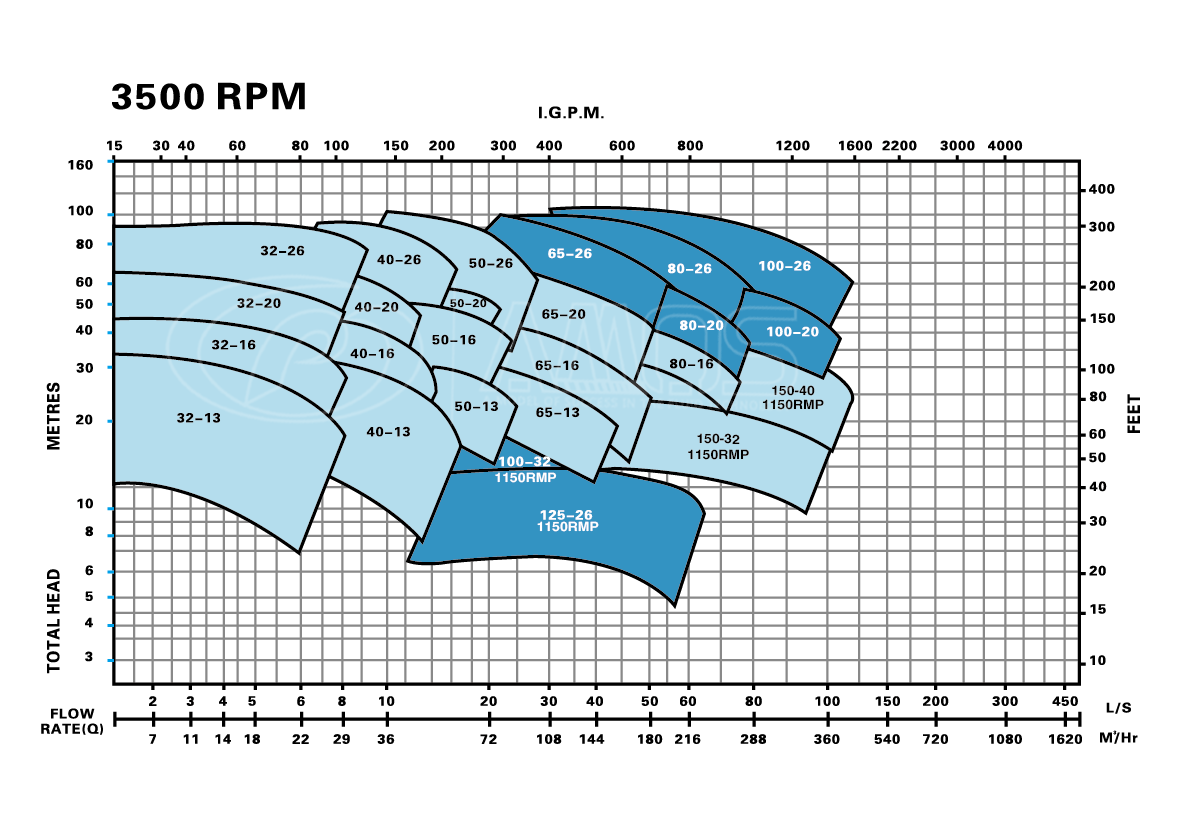

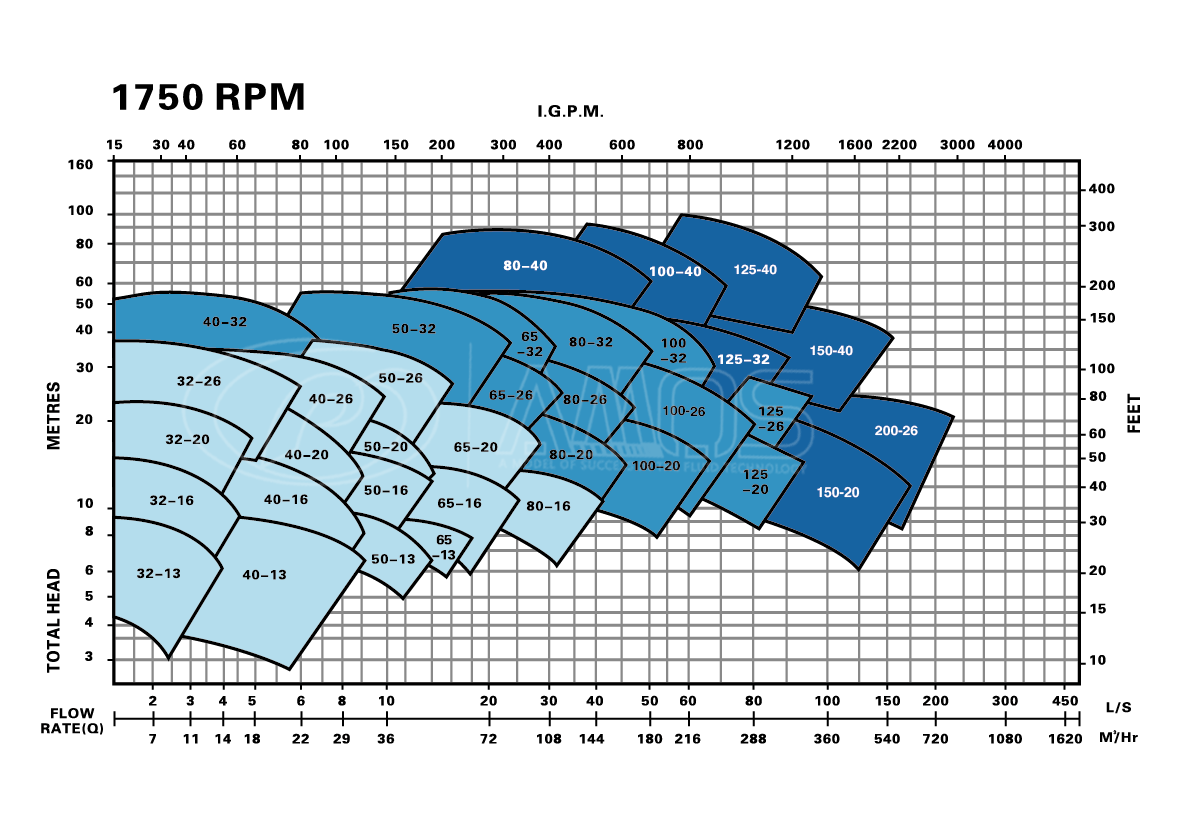

Performance Chart

 MCFA
