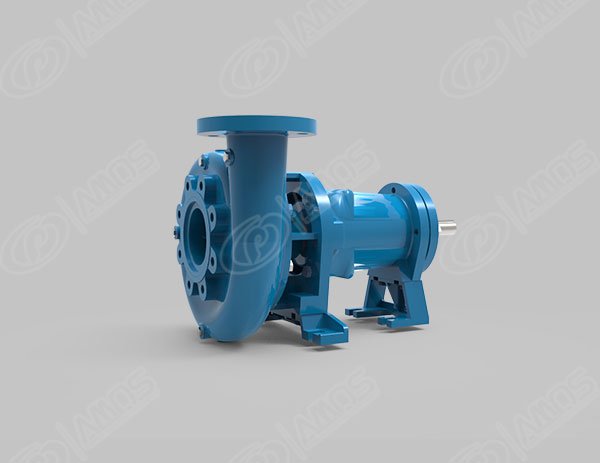

MCQ series end suction pump is designed for general industrial use such as liquid
transfer or as booster pumps. It's robust horizontal cantilever construction ensures stable installation.
The Back Pull-Out design allows rotating element to be removed without disturbing
Pipework. Suction and discharge flanges are machined to ANSI standard 125 lb FF flange and the discharge flange can be placed in 4 different locations depending on piping requirements.
The enclosed, dynamically balanced to standard ISO G6.3, ensure the best efficiency.
This series pump can be applied in a wide range of industrial and municipal
applications, such as heating system, general purpose water supply, boosting, air
conditioning system, fire fighting, irrigation and drainage, water treatment etc.
MCQ
