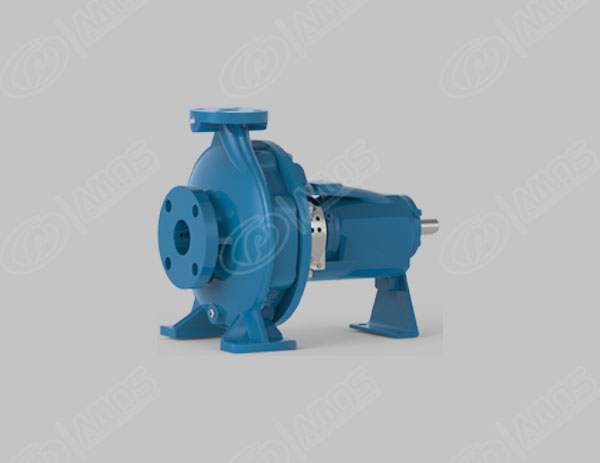

MCE series pump is reliable End Suction Pump manufactured to the international standard EN733/DIN24255, with American system unit. Compared with MCA series pump, it has the same standard and the common impeller, casing cover and frame with same technology process and functions. It allows full interchangeability. MCE series pump is connected with standard NEMA motor by ANSI standard flange. This line pump are featured with high efficiency and energy saving. Products are widely used in regional heating, general water supply, air conditioning, refrigeration plant, industry, fire fighting and environmental engineering.

ApplicationsRegional heating
General water supply Ai
conditioning Refrigeration plant
Industry
Fire fighting
Environmental Engineering
Tech Data Dis.charge Size:1.25"-12"
Capacity:Max 9000GPM
Head:Max500FT
Media Temp:-20℃~+130℃
System Pressure:Max 16BAR
Designation MCE 2x1.25-7:
Imp dia is 7"
Outlet is 1.25"
Inlet is 2"
Series code

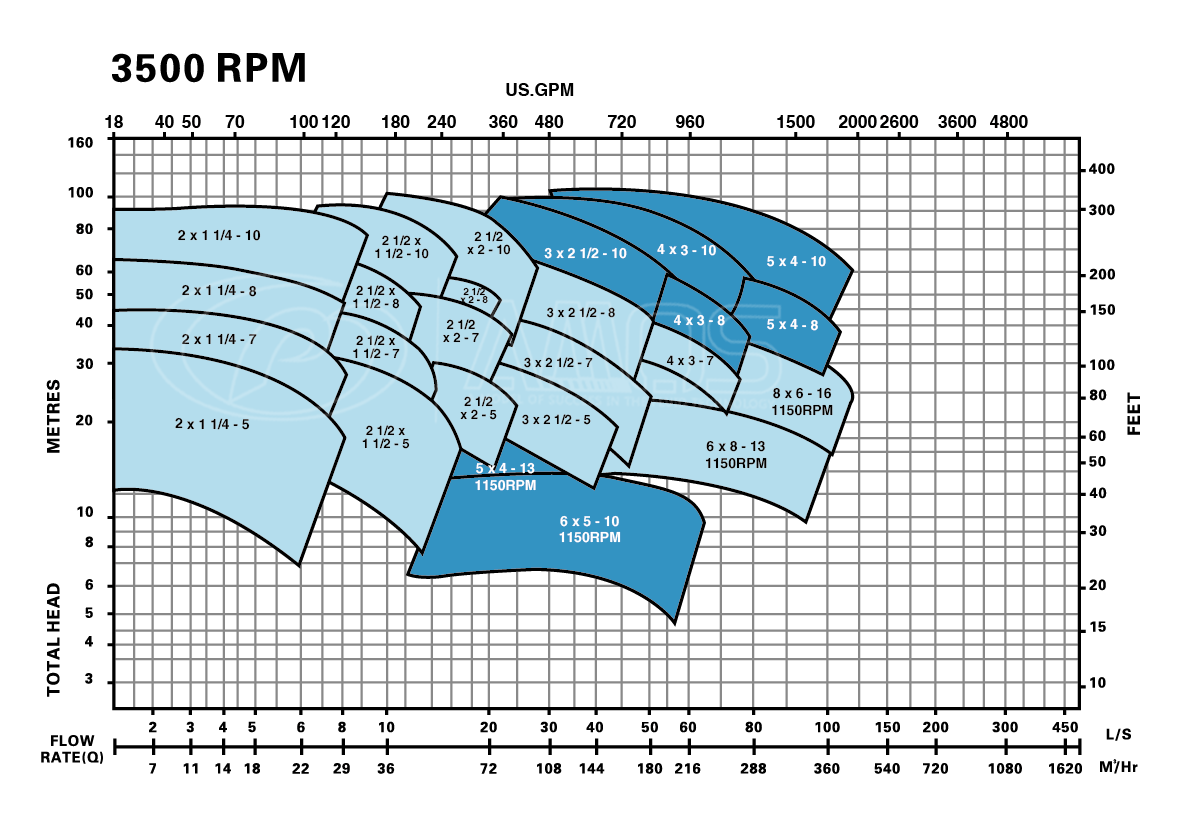

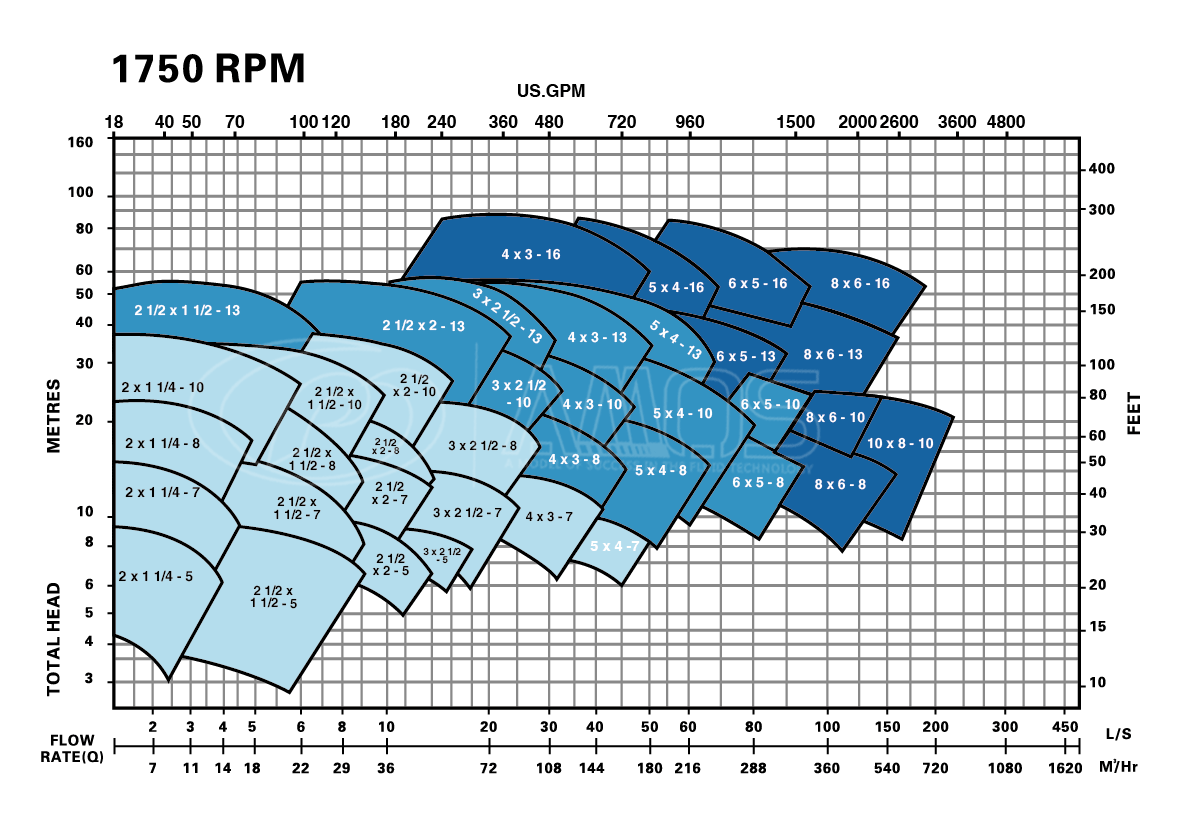

Performance Chart

 MCE
