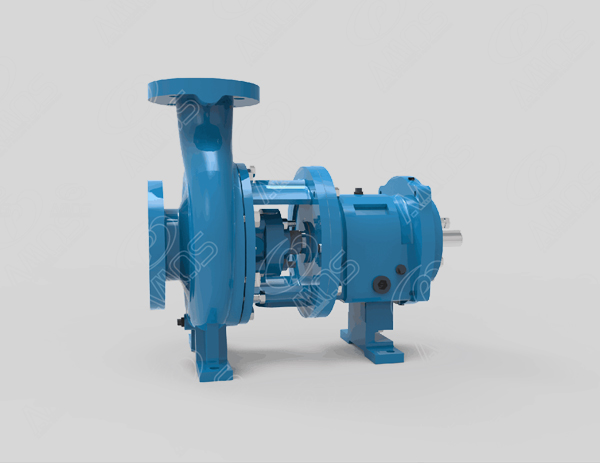

MCN-G series chemical process pumps comply with ASME/ANSI B73.1M standard. With a maximum capacities of 7000GPM, maximum head of 730 feet, temperatures to 371℃ and pressures to 375PSIG, this series pumps are designed for total range of industry services. Besides extended pump life, its' back pull-out design, external impeller adjustment and maximum interchangeability simplify the maintenance. Fully open impeller, full 50/60 Hz coverage and various sizes make hydraulic performance optimum. It is the best choice for chemical, petrochemical, pulp & paper, primary metals, food & beverage and general industries. Both bare shaft pump and pump package unit with base plate and motor are available. Various material constructions can be offered according to requirement.

Applications Chemical Engineering
Paper and Pulp
All process industry
Tech Data Discharge Size: 1-8”
Capacity: Max. 7000 GPM
Head: Max. 730 FT
Media Temp.: -25~+140℃
System Pressure: Max. 375 PSIG
Designation MCN-G 1x1.5-8:
Impeller Diameter: 8”
Outlet: 1”
Inlet: 1.5”
Series code: MCN-G

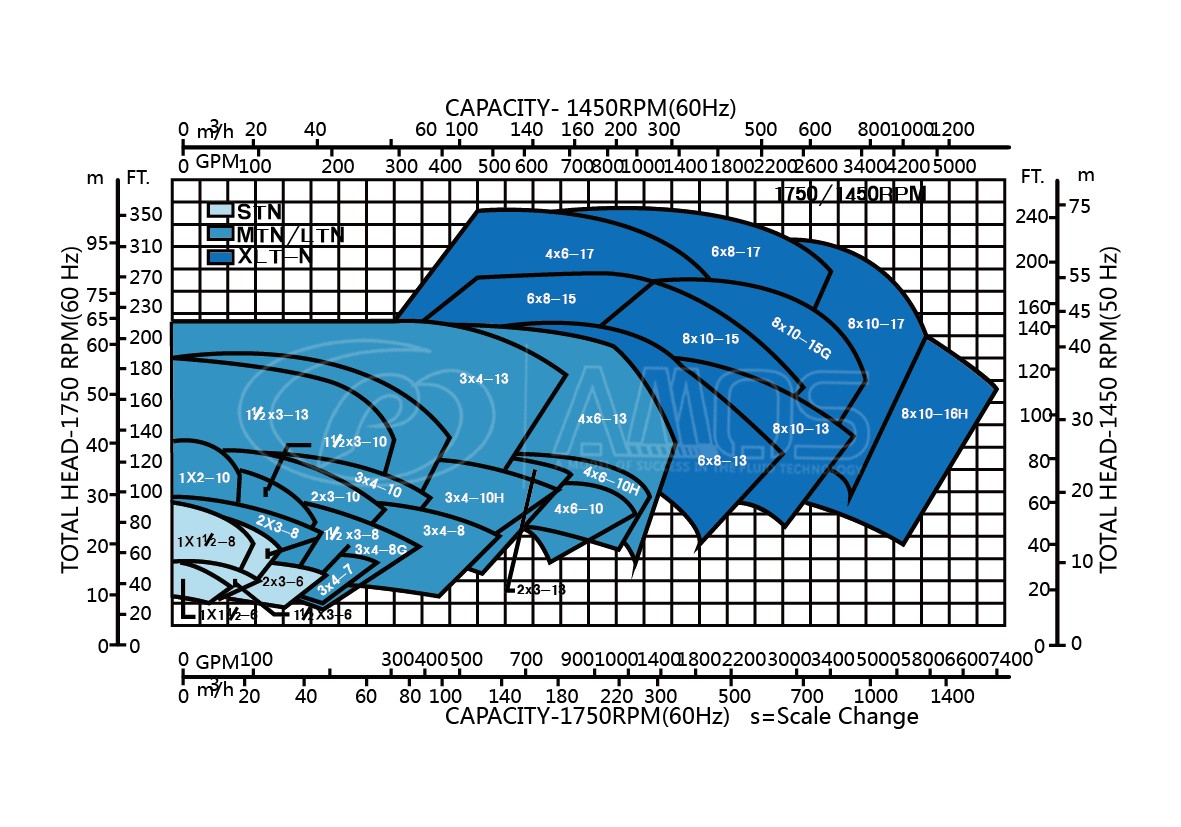

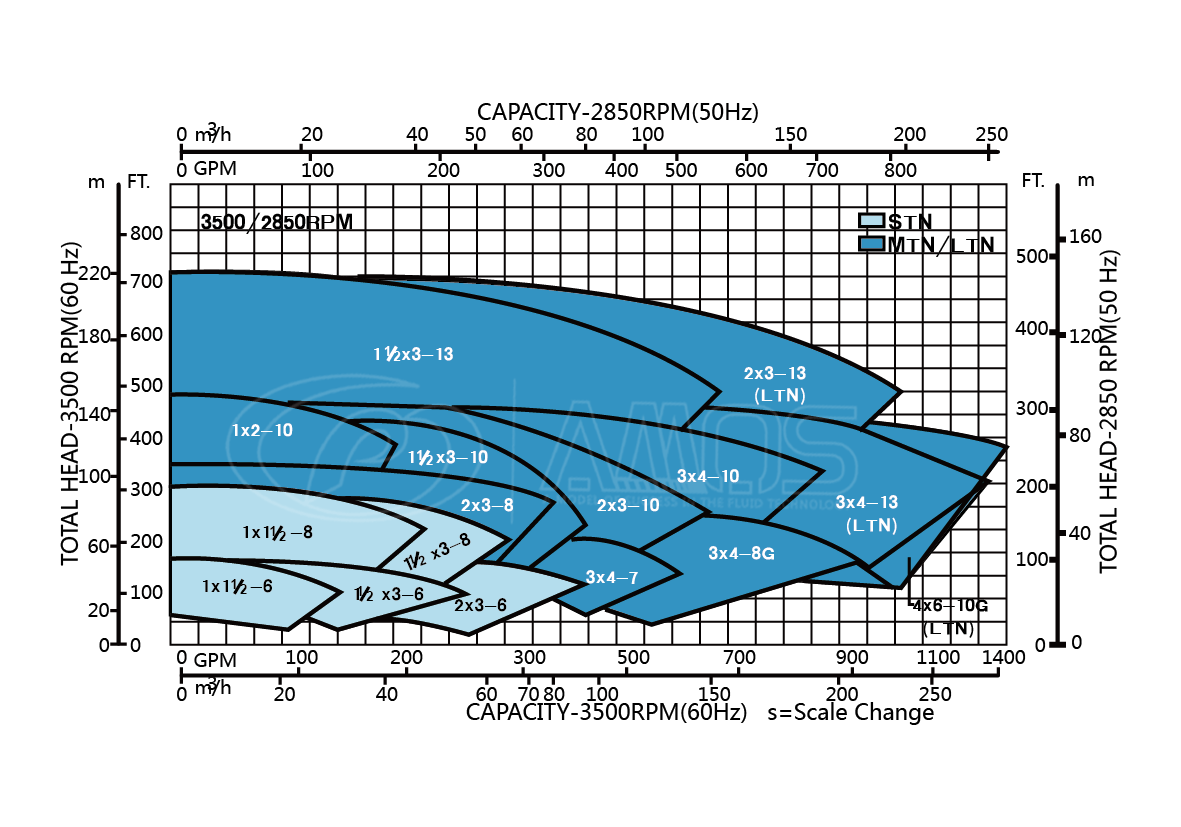

Performance Chart

 MCN-G
