MCN-SP process pump line is specifically designed to provide superior performance for self-priming services of the Chemical Process Industries. Power end kit, stuffing box kit and impeller are fully interchangeable with MCN-G series pumps.
Paper and Pulp
All process industry
Tech Data Dis.charge Size：1＂-6＂
Capacity：Max 1250USGPM/H
Head：Max 430Ft
Media Temp：+260℃
System Pressure:Max 25BAR
Designation MCN-SP 1x1.5-8：
Impeller Diameter: 8”
Outlet: 1”
Inlet: 1.5”
Series code: MCN-SP

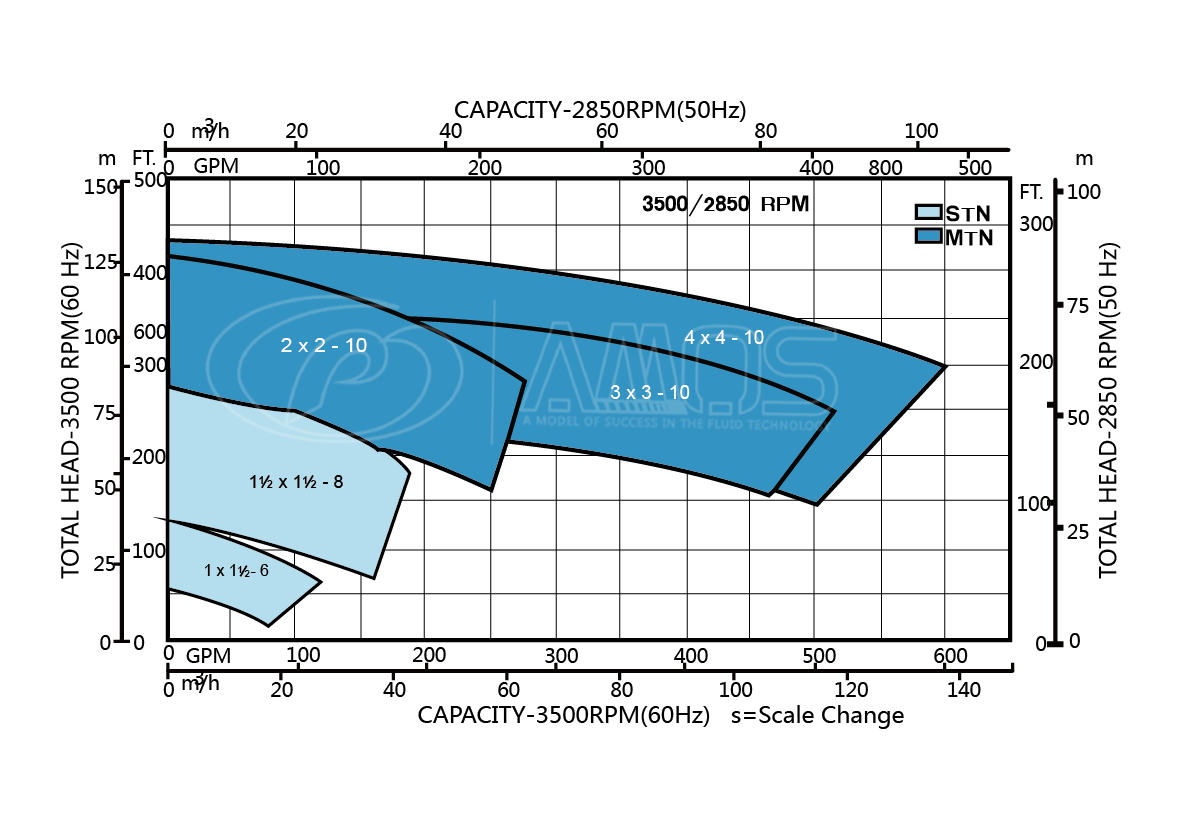

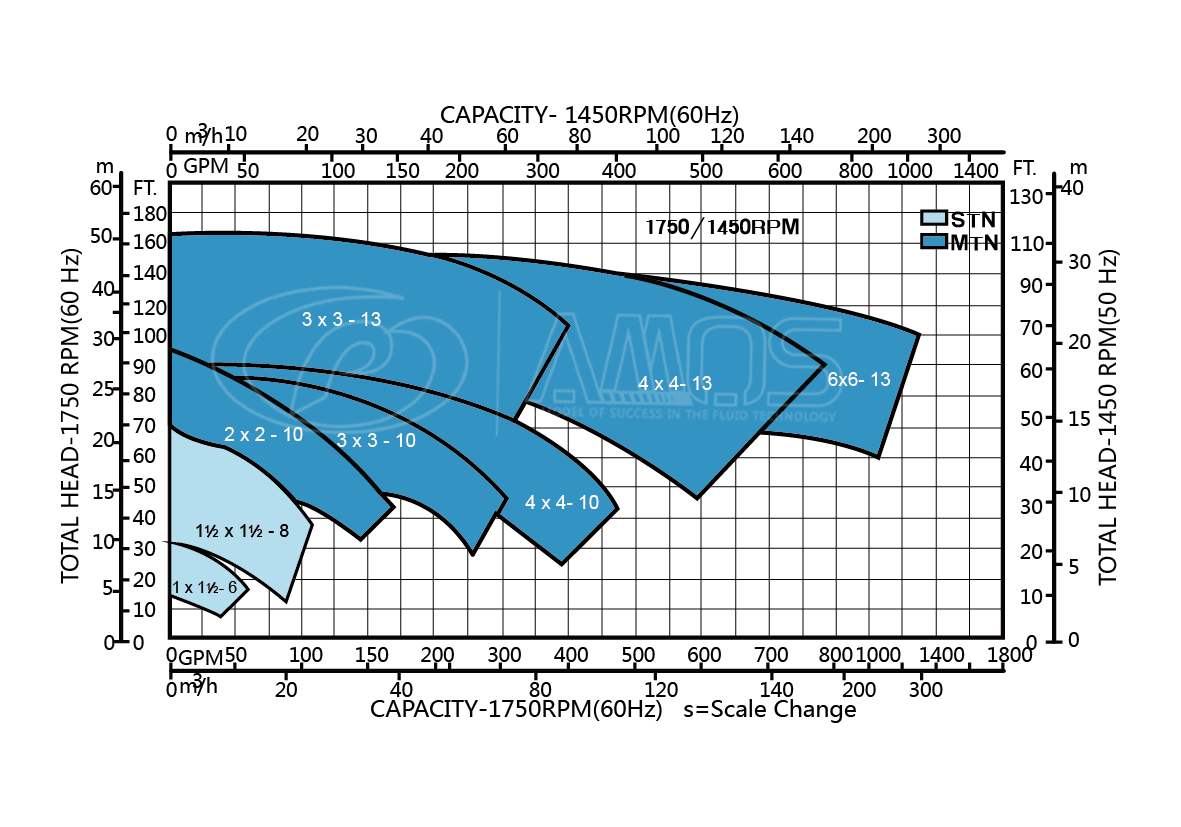

Performance Chart
MCN-SP
