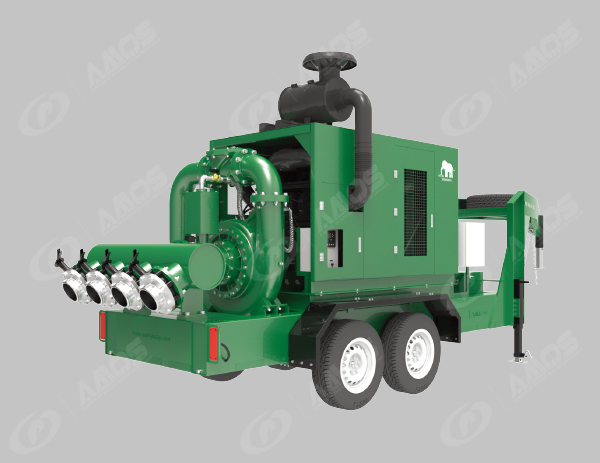

HH200S22
Pump Size: 8x6 inches (200x150 mm)
Max Flow:4150 US GPM (942 m3/h)
Max Head: 640 feet (195 m)
Solids Size:2 inches (51 mm)
Engine Specifications Engine Model:DEUTZ TCD16.0V8
Rated Power at speed:697HP @ 2100RPM
ENGINE TYPE:Water-cooled, V version (90°）8-Cylinder enginewith turbocharging and charge air cooling.
Displacement:370 Cu.In. (6.1 Liters)
EPA Tier:Tier 4 Final/Stage V
Fule Tank:338 U.S. Gallons (1280 Liters) Larger volume fuel tank is availabl
Full Load Operating Time:9.9 Hours
Starter:24 Volts Electric
Control Panel: Murphy, Controls Inc, Deepsea, Kensho, Lofa
Performance Chart
HH200S22
