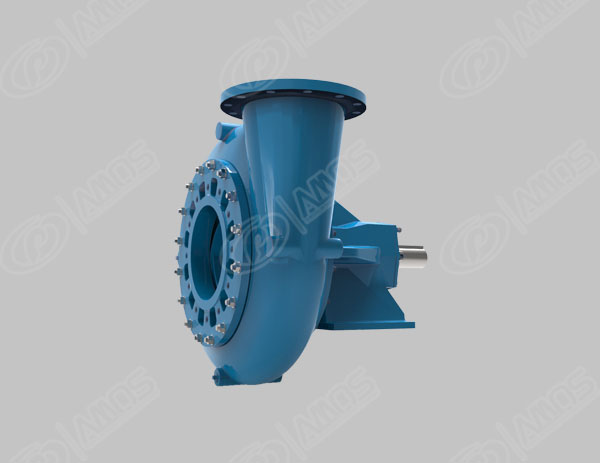

Series MCO-XP pumps are single stage centrifugal mud pump. They are applied to barite & mineral oil based drilling mud, bentonite, salt water slurry, chemical industry, etc. Thick, strong, concentric casing with replaceable casing wear pad provides extended life over conventional volute designs. Wide semi-open impeller creates lower axial thrust for improved bearing life, and semi-open design reduces the concentration of solids behind the impeller, extending the life of the mechanical seal or packing and stuffing box. There are two mechanical seal alternative, single or double mechanical seal. This stuffing box can be configured for flush lines.

Applications Barite & mineral oil based Drilling Mud
Bentonite, salt water slurry
Cement
Paper and Pulp
Mine dewatering
Lime, gypsum, calcium
Ash & Coal liquid slurry
Chemcial industry
Tech Data Dis.charge Size:12"
Capacity:Max 7000 USGPM
Head:Max 8Bar
Designation MCO-XP 6x5-11:
Imp dia is 11"
Outlet is 5"
Inlet is 6"
Series code

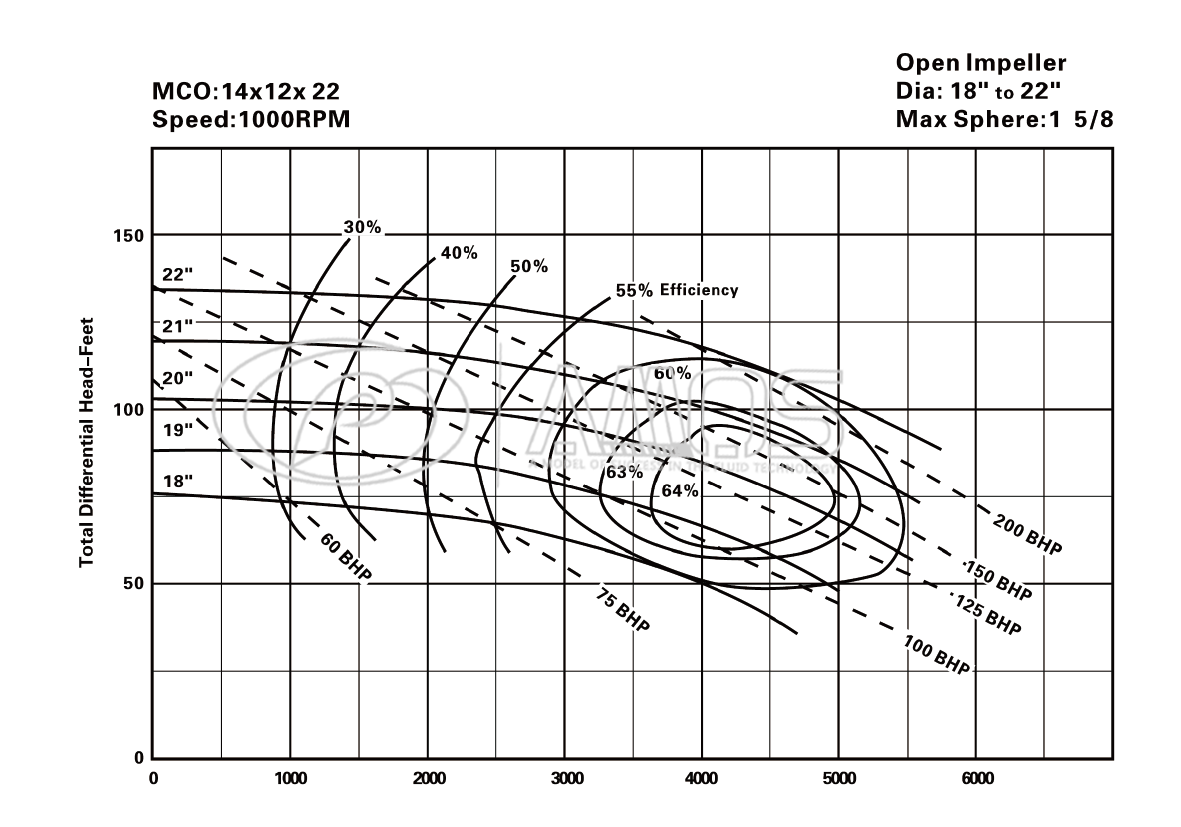

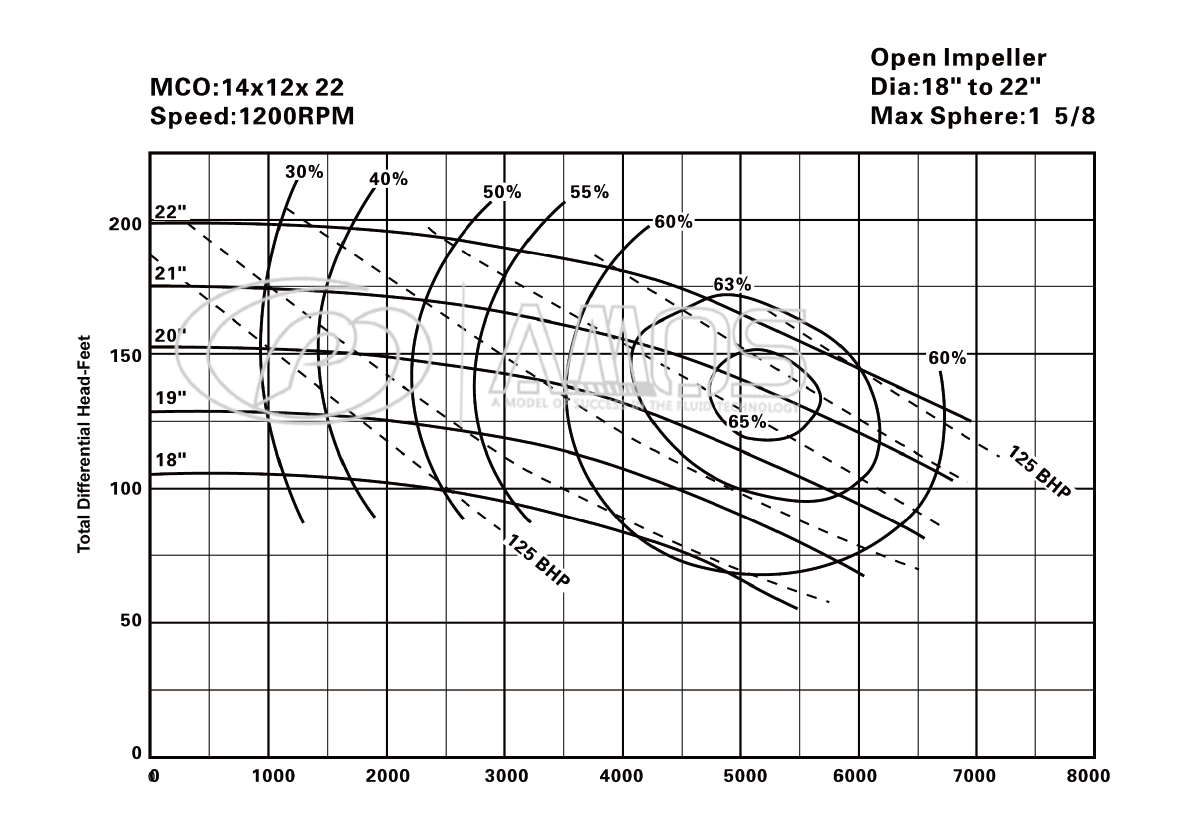

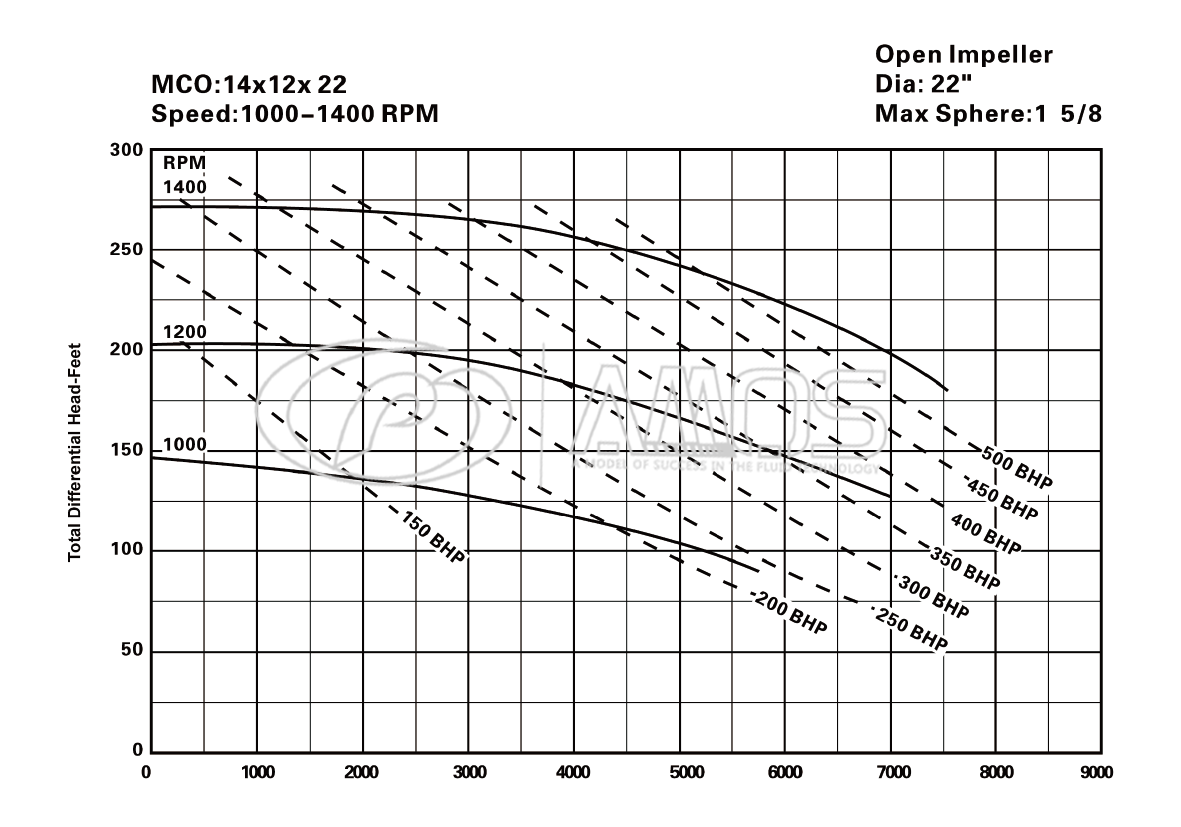

Performance Chart

 MCO-XP
